FISCH

Welder Tools

MiG-160

FEATURES :

  • Semi automatic welding process, as the wire feed rate and arc length controlled by the power source.
  • Positively charged wire and connected to a power source delivering a constant voltage
  • The welding process offers high productivity, as the wire is continuously fed.
  • Consumables ( wire, etc ) are generally competitively priced compared with those for other processes.
SPECIFICATIONS
MiG-160
Rated Input Voltage
220-230 V
Frequency
50 Hz
Welding Current Range
20-160 A
Input Power
450-3000 W
Rated Duty Cycle
60%
Usable Welding Wire
0.6 / 0.8 / 0.9 / 1.0 mm
Usable Welding Rod
1.6 – 3.2 mm
Insulation Grade
H
Housing Protection Grade
IP21S
Weight
7.5 Kg

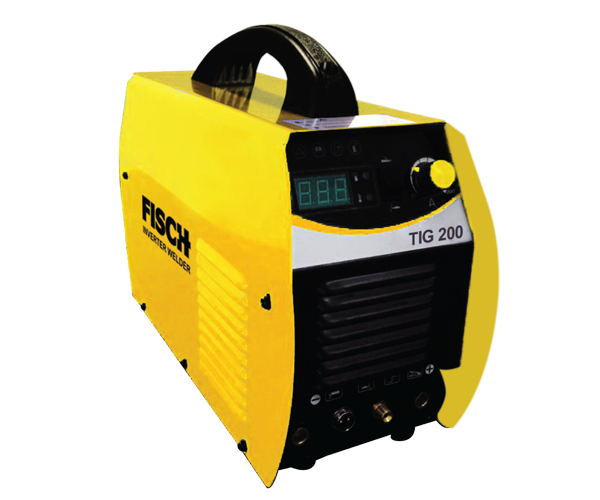

FISCH TIG 200A Inverter Welder

FEATURES :

  • Stronger, more concentrated & more stable arc
  • Effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation & multi use
  • Compact in volume, easy to install & operate, powerful motor
SPECIFICATIONS
TIG200
Power Voltage
AC 230V
Frequency
50/60 Hz
No-Load Voltage
55 V
Welding Current Range
10 – 200 A
Applied Welding Rod
1.6 – 4.0 mm
Input Capacity
4.5 KW
Rated Duty Cycle
60%
Eficiency
80%
Degrees of Protection
IP21
Class of Insulation
H
Weight
11 Kg
WD120MMA flatten

FEATURES :

  • Stronger, more concentrated & more stable arc
  • Effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation & multi use
  • Compact in volume, light in weight, easy to install & operate
SPECIFICATIONS
WD120MMA
Rated Input Voltage
AC 230V
Frequency
50/60 Hz
Welding Current Range
20 – 120 A
Input Power
450 – 3000 W
Max No Load Voltage
60 V
Rated Duty Cycle
60% under 25 C
Usable Electroda
01.6 – 3.2 mm
Insulation Grade
H
Housing Protection Grade
IP21

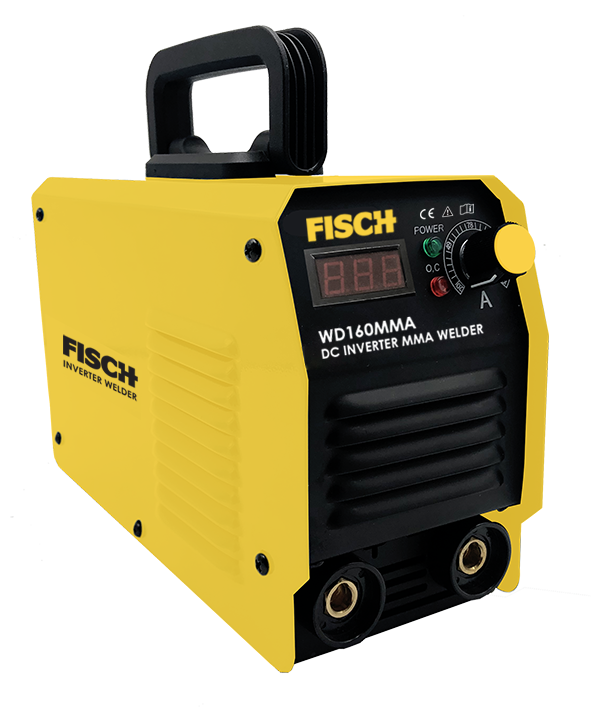

WD160MMA flatten

FEATURES :

  • Stronger, more concentrated & more stable arc
  • Effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation & multi use
  • Compact in volume, light in weight, easy to install & operate
SPECIFICATIONS
WD160MMA
Rated Input Voltage
AC 230V
Frequency
50/60 Hz
Welding Current Range
20 – 160 A
Input Power
450 – 3600 W
Max No Load Voltage
60 V
Rated Duty Cycle
60% under 25 C
Usable Electroda
2.0 – 4.0 mm
Insulation Grade
H
Housing Protection Grade
IP21

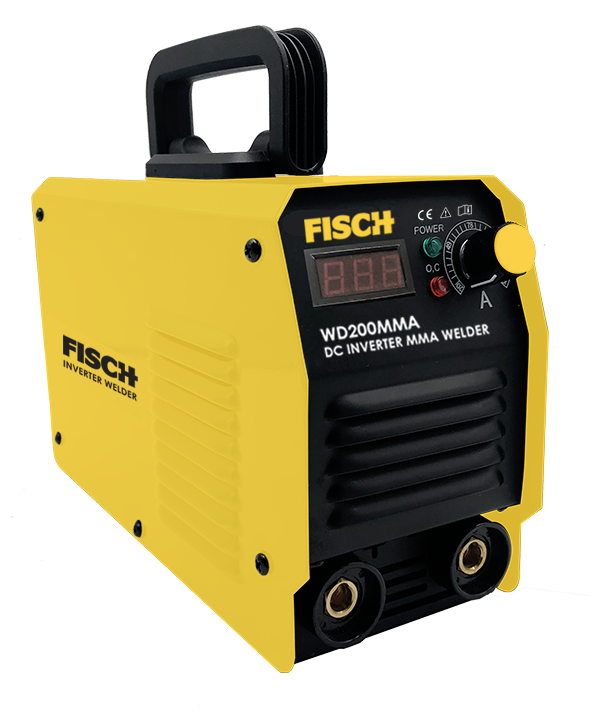

WD200MA flatten

FEATURES :

  • Stronger, more concentrated & more stable arc
  • Effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation & multi use
  • Compact in volume, light in weight, easy to install & operate
SPECIFICATIONS
WD200MMA
Rated Input Voltage
AC 230V
Frequency
50/60 Hz
Welding Current Range
20 – 200 A
Input Power
450 – 4500 W
Max No Load Voltage
60 V
Rated Duty Cycle
60% under 25 C
Usable Electroda
2.5 – 5.0 mm
Insulation Grade
H
Housing Protection Grade
IP21
